AGV platforms that automate internal load transport across industrial, airport and logistics facilities — integrating into existing floor layouts and engineered to operate safely alongside personnel.
High-cadence internal transport in industrial and logistics facilities ties up personnel on repetitive, low-skill tasks and introduces variability in throughput, traceability, and safety. Manual transport also creates floor traffic conflicts between personnel and heavy loads — a persistent operational risk in airport apron support, manufacturing assembly lines, and distribution warehouses.
The TBO AGV range covers the full spectrum of internal transport needs — from 700 kg platform carriers through to 25,000 kg tow tractors — under a consistent control architecture: Siemens S7-1200 PLC, PID with dual processor and triple supervision, WiFi/GPRS communications. Guidance uses magnetic or optical tape applied directly to the floor surface, allowing circuit modification without structural works or extended downtime.
Circuit installation uses magnetic or optical adhesive tape applied directly to the floor. No civil works, no dedicated lanes, no structural modifications required. Circuit layout can be modified or extended rapidly when operational needs change, without production stoppages.
AGV platforms operate 24/7 without operator intervention, executing pre-programmed routes across shift changes. Load capacity, route, speed, and action triggers are defined in advance — eliminating throughput variability from manual transport cycles.
Each unit integrates SICK laser obstacle scanning, emergency stop pushbuttons, and audio-visual presence alerts. Platforms share floor space with personnel without dedicated exclusion zones, reducing facility modification requirements.
All units communicate via WiFi/GPRS with a centralized management system for configuration, monitoring, and route management. RFID tags embedded in the floor circuit define action points, enabling full load movement traceability across the facility.
From 700 kg platform carriers to 25,000 kg tow tractors, all TBO AGV families share a consistent control architecture — Siemens S7-1200 PLC, PID dual-processor control, WiFi/GPRS communications, and SICK laser safety systems.

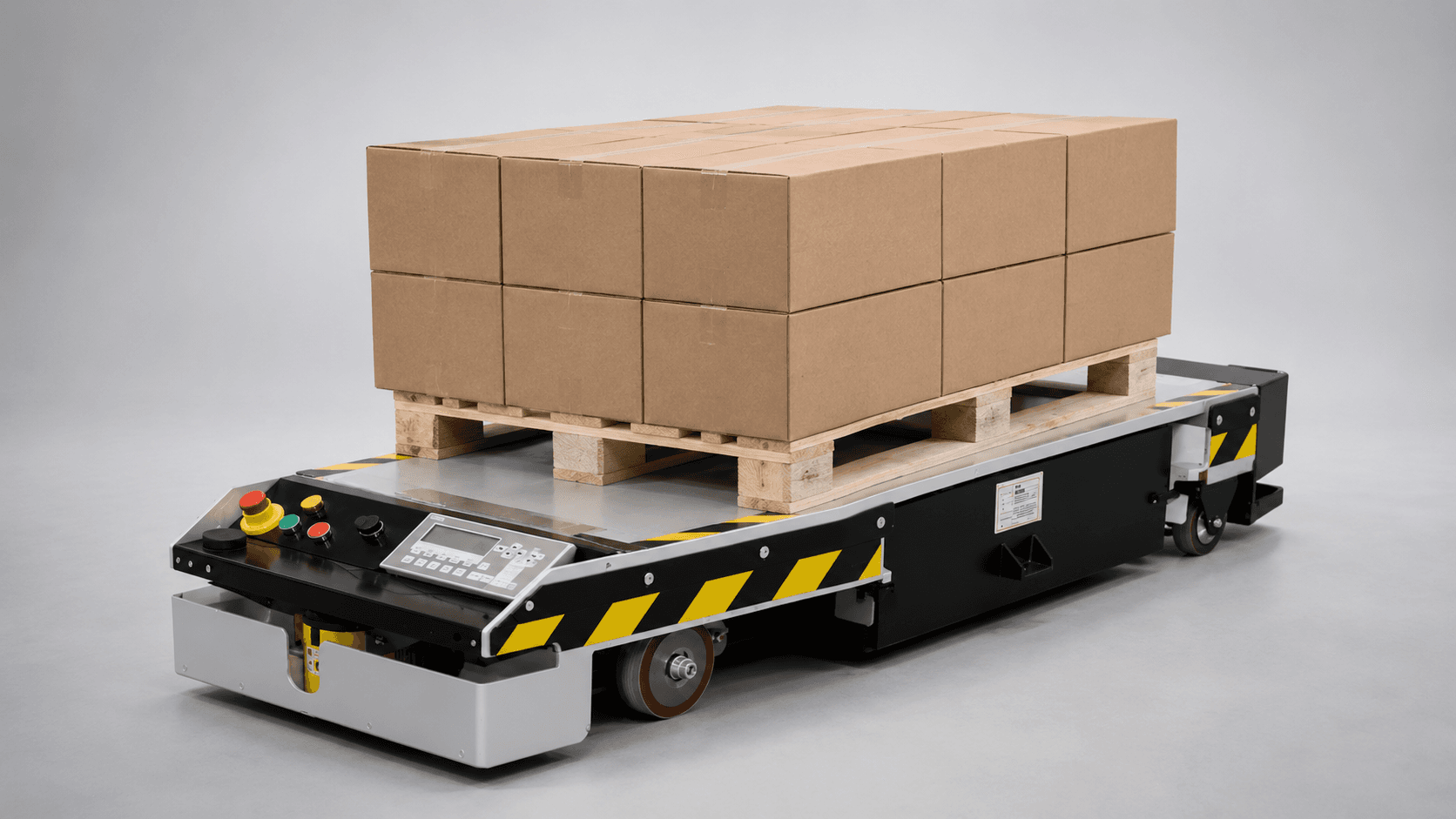

Low-profile platform carriers for industrial and logistics internal transport. 25 mm ground clearance for operation under carts and trolleys.

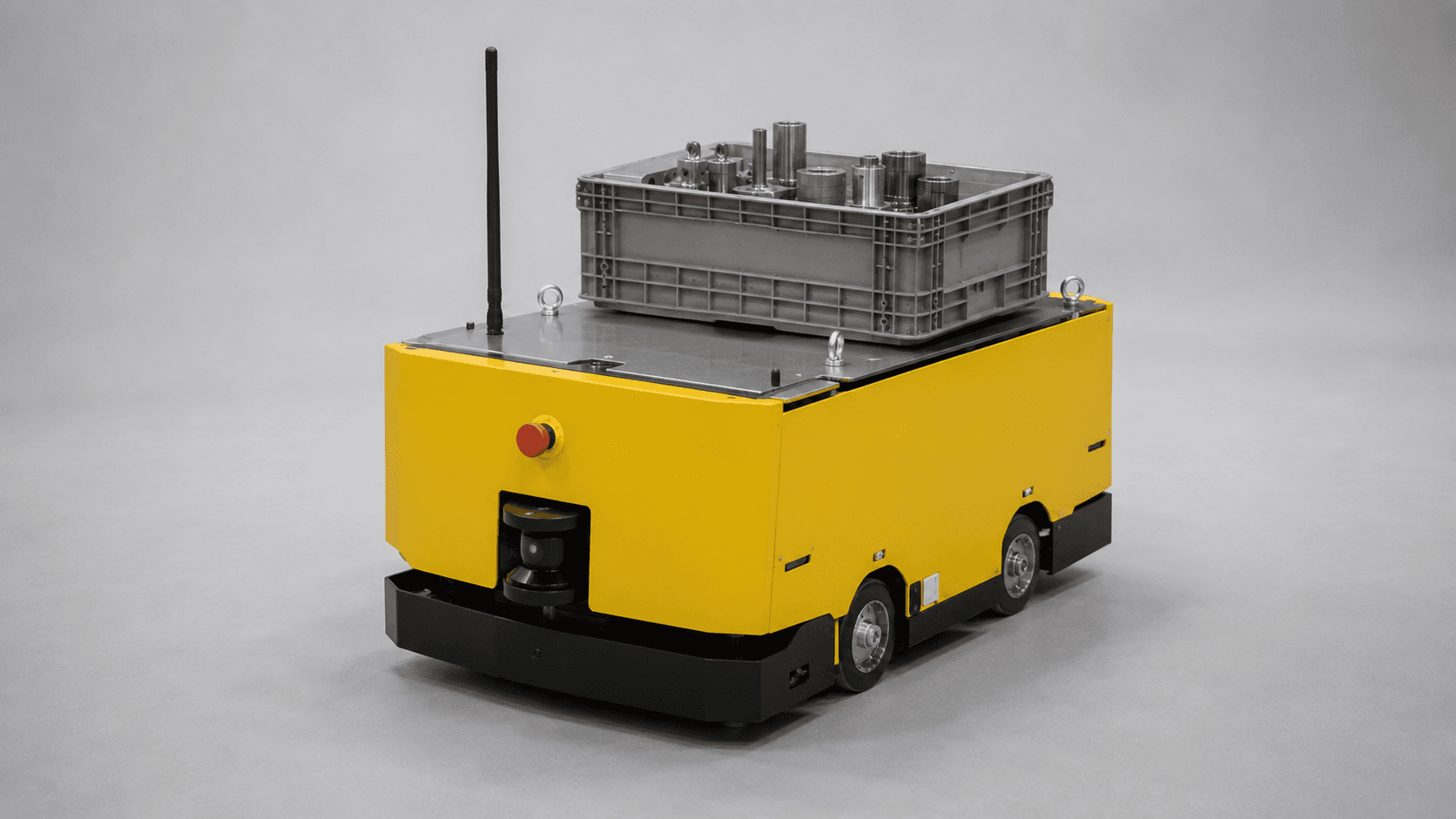

Higher-speed transport carts for medium-load applications in industrial and logistics facilities.

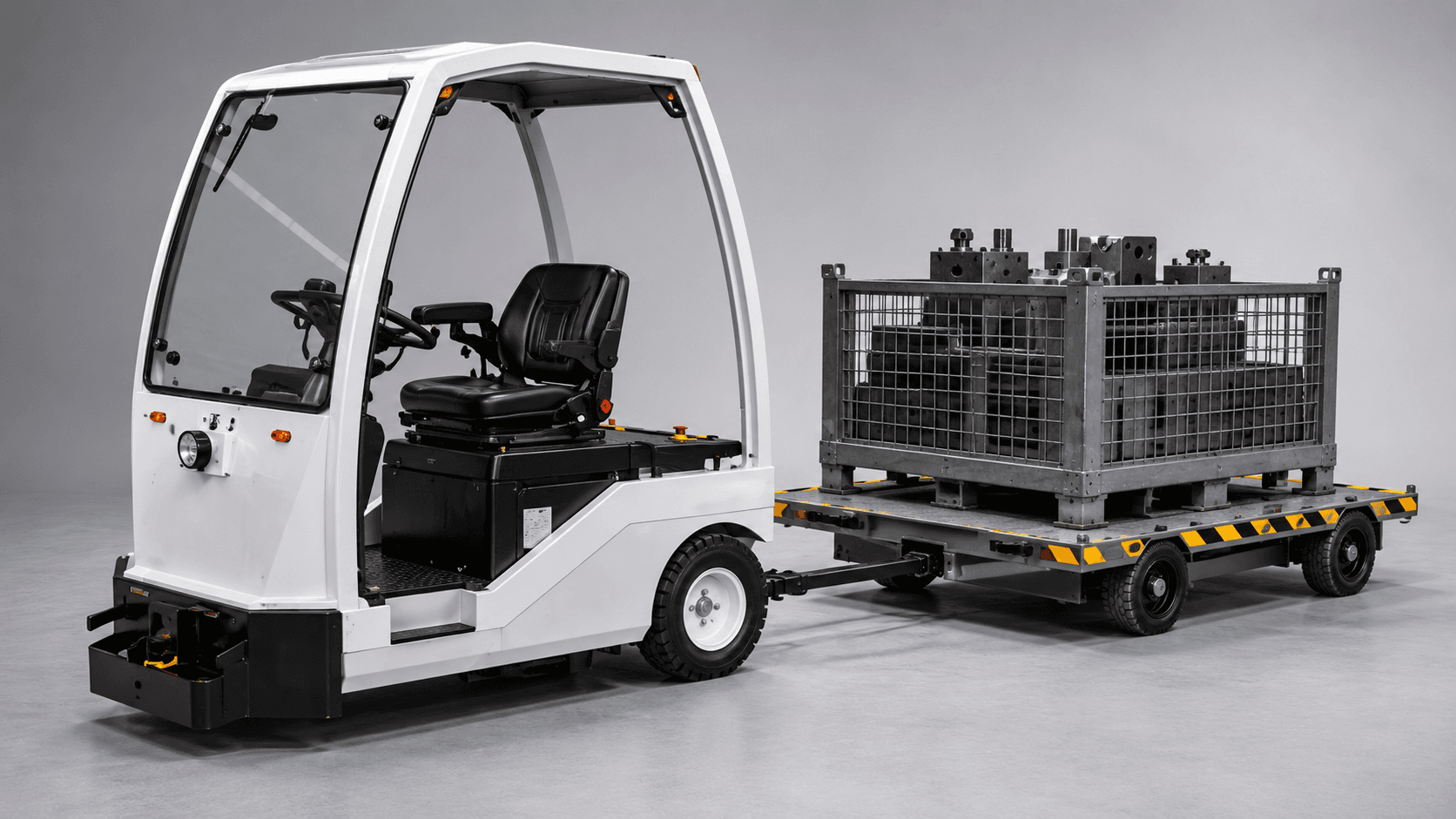

Heavy-duty automated tow tractors for high-capacity internal transport in industrial and airport environments.

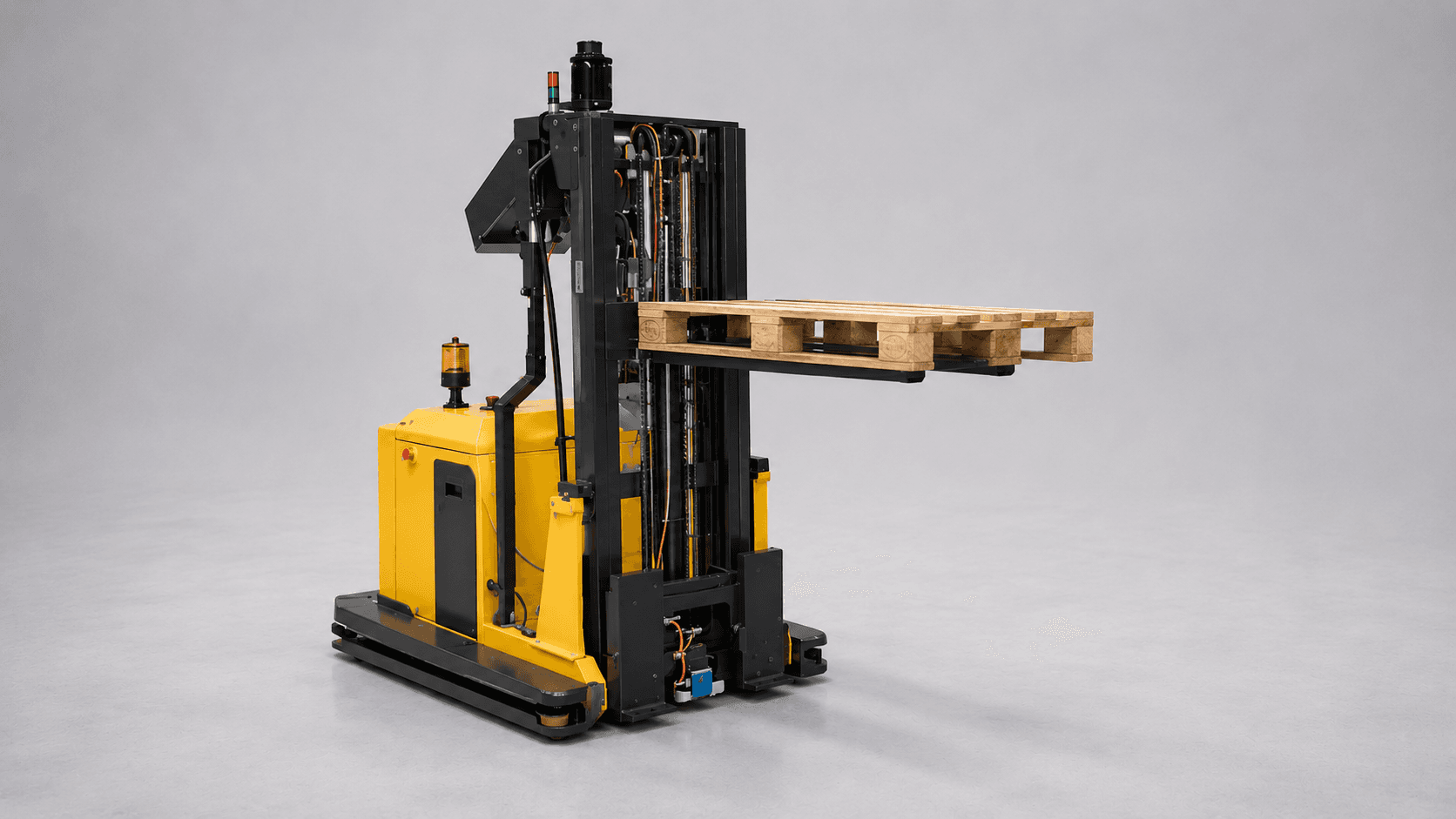

Automated laser-guided stacker for high-density warehouse storage operations.
Low-profile platform carriers for industrial and logistics internal transport. 25 mm ground clearance for operation under carts and trolleys.
Higher-speed transport carts for medium-load applications in industrial and logistics facilities.
Heavy-duty automated tow tractors for high-capacity internal transport in industrial and airport environments.
Automated laser-guided stacker for high-density warehouse storage operations.

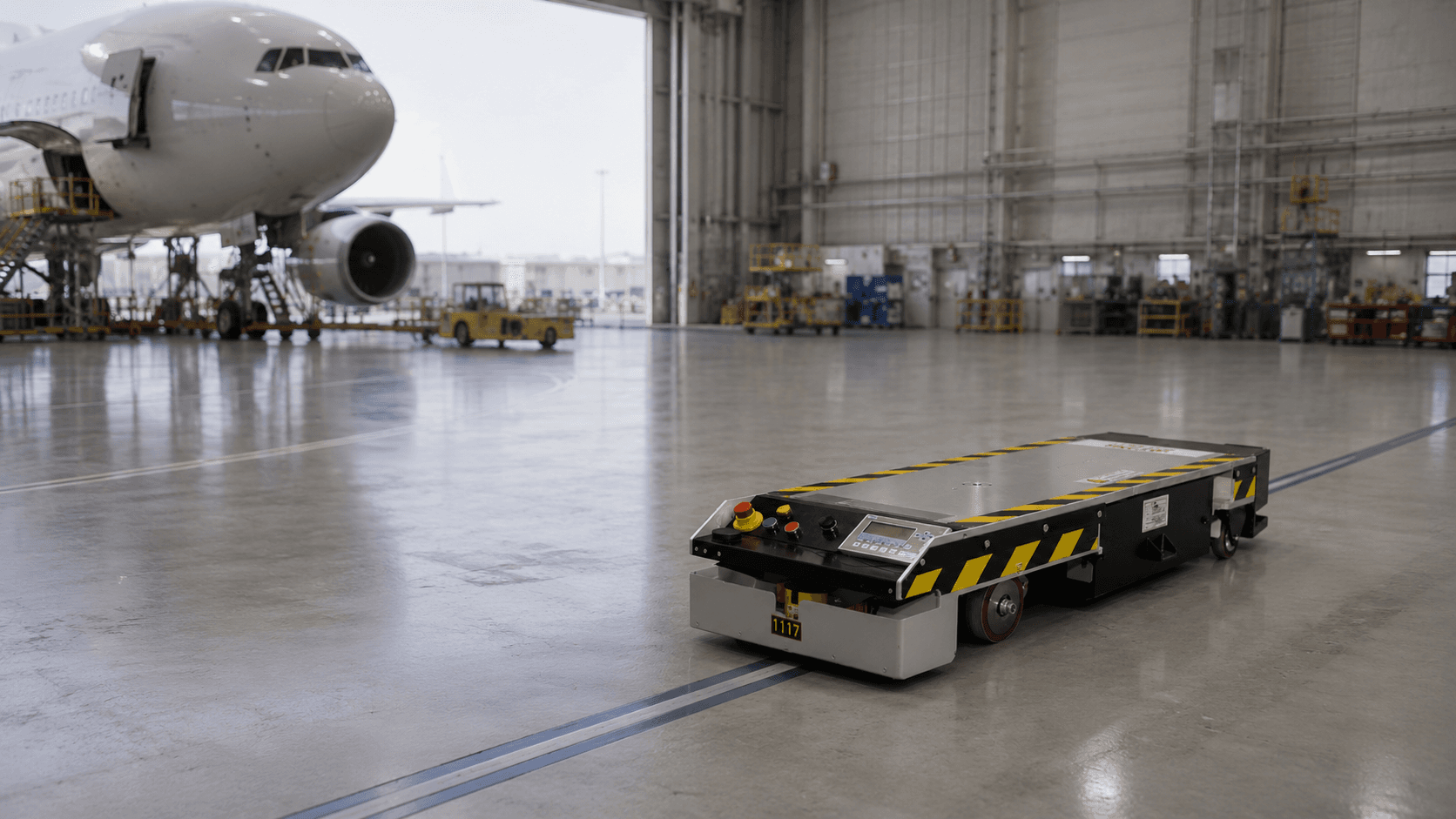

Airport ground support involves continuous movement of heavy loads across facilities where personnel and vehicle traffic overlap. TBO tow tractors (CM family, up to 25,000 kg) automate apron-side and terminal-side towing operations. Platform carriers handle internal baggage and cargo sorting in handling areas. Magnetic tape guidance allows rapid circuit reconfiguration for seasonal layout changes or terminal expansions.

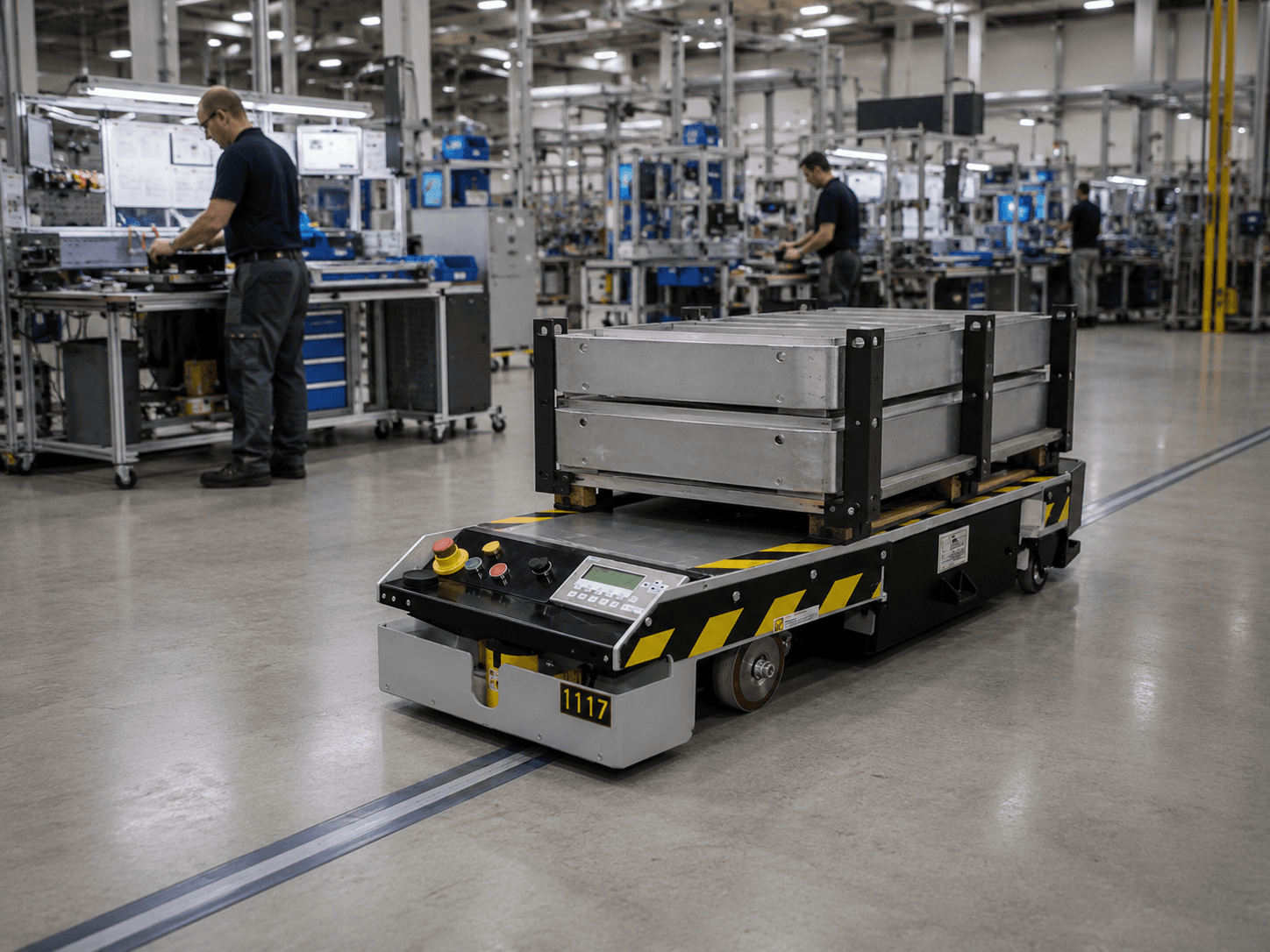

Learn more →Manufacturing assembly lines require reliable, high-cadence internal transport between production stations, storage, and dispatch areas. The TBO AGV range eliminates operator-dependent transport from production circuits, ensuring consistent cycle times and full load traceability via RFID. The range covers loads from 700 kg to 25,000 kg, with laser stacker integration for automated high-density storage.
Learn more →Distribution centres with high-throughput sortation and replenishment cycles benefit from AGV automation of internal transfer routes. The CMT 1000HS operates at up to 90 m/min for fast-cycle environments. WiFi/GPRS communications and centralized management enable fleet coordination across large facility footprints. RFID action points define automated sortation, staging, and dispatch sequences.
Learn more →Full technical specifications for the complete AGV range — all families, models, and configurations.
TBO's technical team is available for product consultations, configuration assessments, and factory visits.
